(MT-220)
R-IBC Mini
Mini size. Maximum impact.

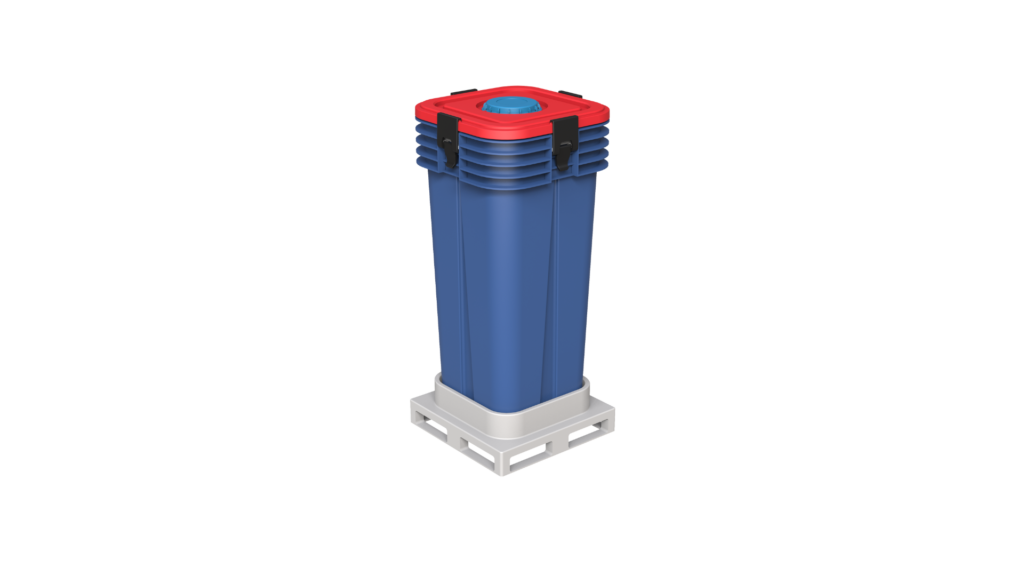

The R-IBC Mini (MT-220) is a 220L reusable IBC that delivers the same smart design and robust performance as larger systems, in a more compact footprint. It is ideal for small batches, agile production lines, pilot projects, and high-value products where control, hygiene, and efficiency are critical.
With shared components, a dedicated pallet base, and multiple PET liner volume options, the MT-220 helps simplify operations while keeping your packaging system flexible and future-proof.
Key Benefits
220L capacity in a compact footprint
Same design logic and aesthetics as MT-1000 for a consistent system family

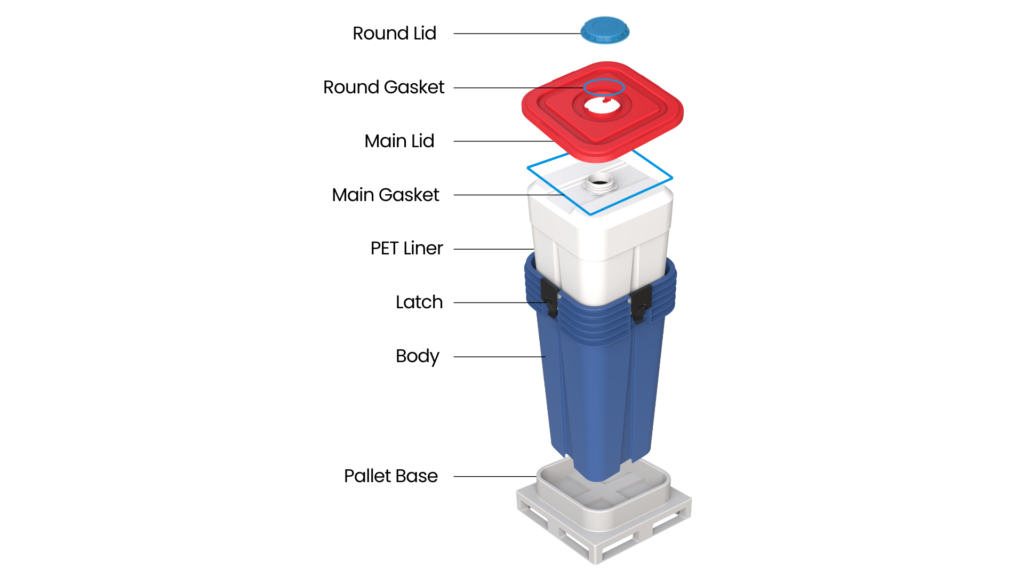

Smart lid system for secure, food-grade sealing
Multiple PET liner sizes to match different batch volumes
Integrated pallet base for safe, easy handling and stacking
Ideal for small-batch, premium, and specialty products

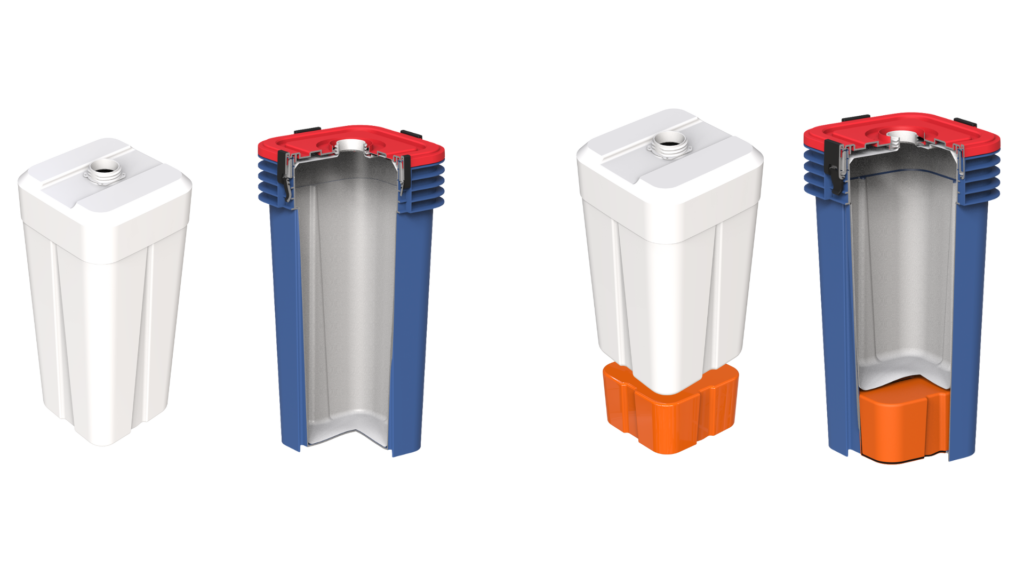

PET Liner Size Options
The R-IBC Mini supports multiple PET liner volumes, allowing you to adapt to different product densities, recipes, and batch sizes without changing the container.
220L PET liner – Full-volume liner for standard fills and maximum capacity
160L PET liner – Reduced-volume liner for smaller batches or higher-density products
Logistics & Handling

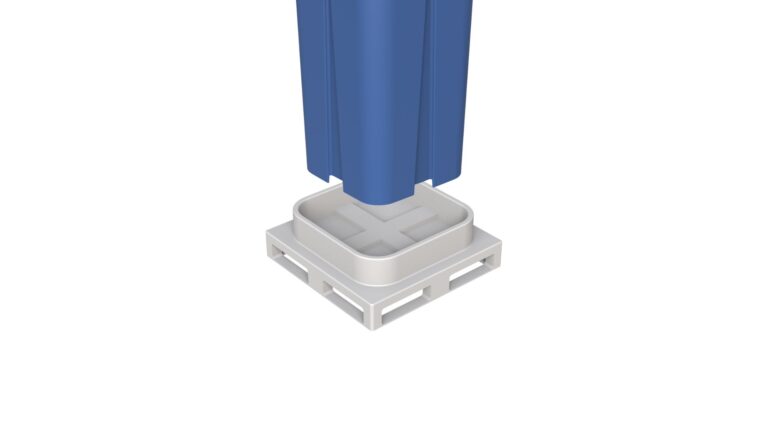

Pallet Base
The R-IBC Mini comes with a dedicated pallet base designed for stable lifting, stacking, and transport. Its reinforced structure locks securely with the container, ensuring smooth forklift and pallet-jack handling while keeping the unit steady during filling, movement, and warehouse storage.
The R-IBC Mini (MT-220) is engineered for efficient transport, smart nesting, and optimized warehouse utilization. Its compact footprint, integrated pallet base, and stackable/nestable design make it ideal for modern supply chains across food, beverage, chemicals, and more.
Efficient Transport Capacity
According to the transport data (bottom-right of the sheet) :
Truck (empty units): 390
40’ HQ container: 335
20’ container: 170
64’ train wagon: 540
This means the MT-220 moves more units per trip compared to traditional 55-gallon drums, helping reduce cost per unit, emissions per unit, and overall logistics overhead.

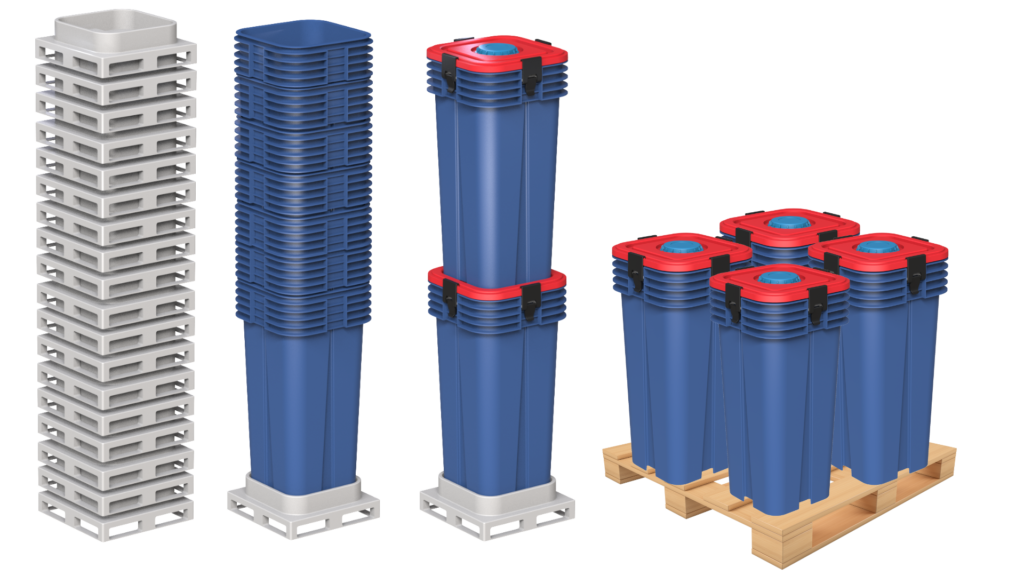

Smart Nesting System (Empty Transport)
The MT-220 bodies, lids, and pallet bases are designed to nest tightly, reducing empty-return volume dramatically.
As shown in the nesting table (center-right of the sheet) :
7 bodies nest to 2,486 mm height
– Each additional body adds only 200 mm55 lids nest to 2,440 mm
– Each lid adds a minimal 45 mm19 pallet bases nest to 2,540 mm
– Each base adds 130 mm
Applications
